Typically used for
.cls-1 { fill: #fff; } Sensors Monitoring & Control
Climate Optimization
Irrigation & Outdoor Management
Custom Sensor Projects
Key Features
Sensor Connectivity Expansion
Galvanic Isolation
1-Wire Interfaces
Analog Inputs
Digital Inputs
One potential-free solid-state relay output
Dry Contact Input and Output
Arduino Sensor Compatibility

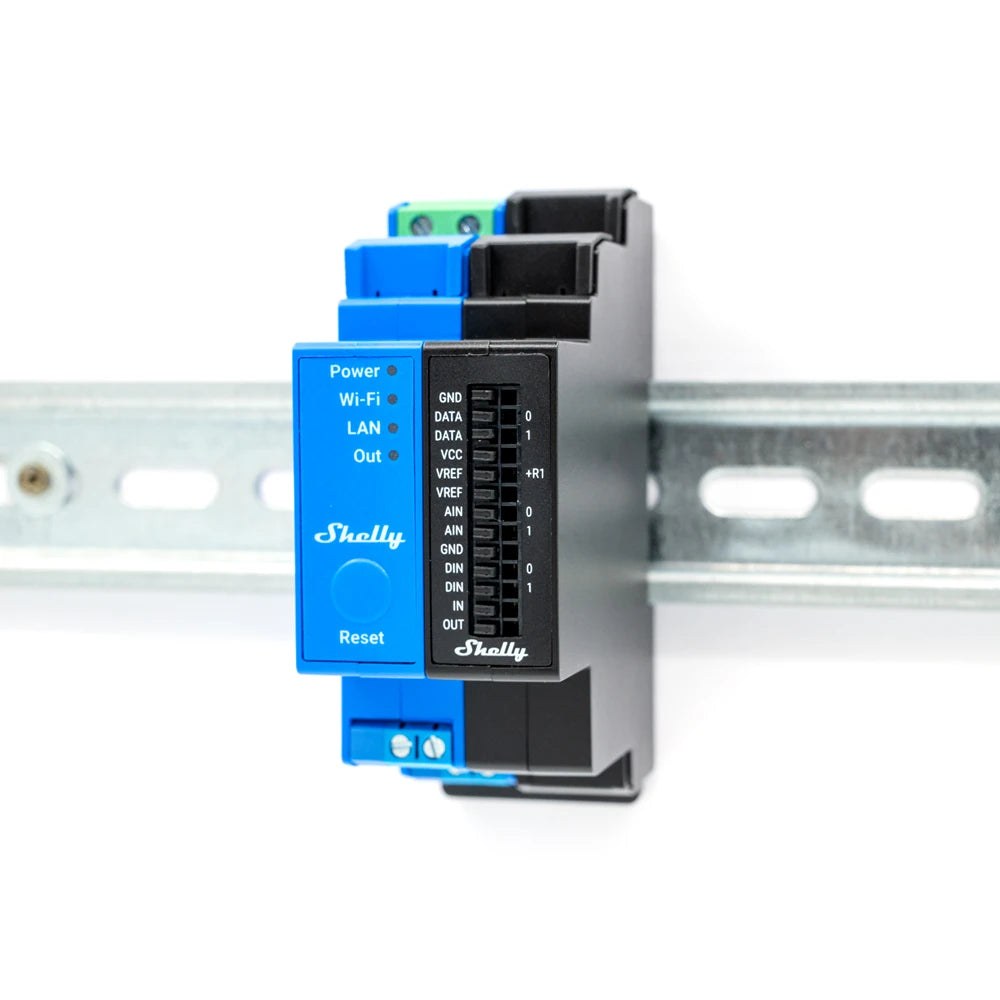

DIN Rail Mounting
Configurable Input Settings
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 94x19x69 / 3.70x0.75x2.71 |
Weight: | 45 g / 1.59 oz |
Mounting: | DIN Rail |
Conductor cross section: | 0.2 to 0.5 mm² / 24 to 20 AWG |
Conductor stripped length: | 5 to 8 mm / 0.20 to 0.31 in |
Shell material: | Plastic |
Shell color: | Black |
Connectors color: | Black |
Environmental | |
Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30% to 70% RH |
Max. altitude: | 2000 m / 6562 ft |
Electrical | |
Power supply: | 12 V (from compatible Shelly device) |
Power consumption: | < 0.5 W (without sensors) |
Digital input: | -15 V to 0.5 V (True) / 2.5 V to 15 V (False)* |
Analog input range: | 0 to 100% |
Analog input report threshold: | 1%** |
Voltmeter range: | 0 to 10 V |
Voltmeter report threshold: | 0.1 V** |
Analog input / Voltmeter accuracy | Better than ±5% |
Output circuits ratings | |
VCC max. current: | 10 mA |
VREF max. current: | 2 mA |
VREF+R1 resistor | 10 kΩ |
Max switching voltage: | 30 V |
Max switching current: | 300 mA |
Microcontroller unit | |
CPU: | STM32G071GBU6 |
Compatible devices: |
|
Others | |
Temperature reading accuracy: | Depends on the DS18B20 or DHT22 sensors |
Humidity reading accuracy: | Depends on the DHT22 sensor |
*Logic can be inverted in the digital input settings
** Can be configured in the analog input / voltmeter settings
What are the differences between the different generations of Shelly products?
Each new generation adds more power, memory, and features:
Gen 1 offers basic control;
Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;
Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;
Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.
Can I control the device via Bluetooth?
No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.
For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.
Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.
Is it possible to use the device without a hub?
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
Use cases
Precision Agriculture & Remote Irrigation
Use Shelly Pro Sensor Add-on to connect soil moisture, temperature, and humidity sensors to your Shelly Pro devices and automate irrigation based on real conditions, not guesswork.
Smart Environmental Monitoring in Warehouses
Use Shelly Pro Sensor Add-on to connect temperature and humidity sensors to your Shelly Pro devices and track conditions in real -time.
Solar Park Environmental Monitoring
Use Shelly Pro Sensor Add-on to connect temperature, light (irradiance), and wind sensors to your Shelly Pro devices and monitor conditions on-site in real time.
Industrial Factory Automation
Use Shelly Pro Sensor Add-on to connect temperature, vibration, and liquid level sensors to your Shelly Pro devices for real-time equipment monitoring.
