Device identification
Device name: Shelly Plus Add-on
Short description
Shelly Plus Add-on (the Device) is a galvanically isolated sensor interface to the Shelly Plus and Gen3 devices.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Agricultural (greenhouses, hotbed, nurseries, ranches, etc. )
Government/municipal
University/college
Future integrations
Google
Amazon
Samsung SmartThings

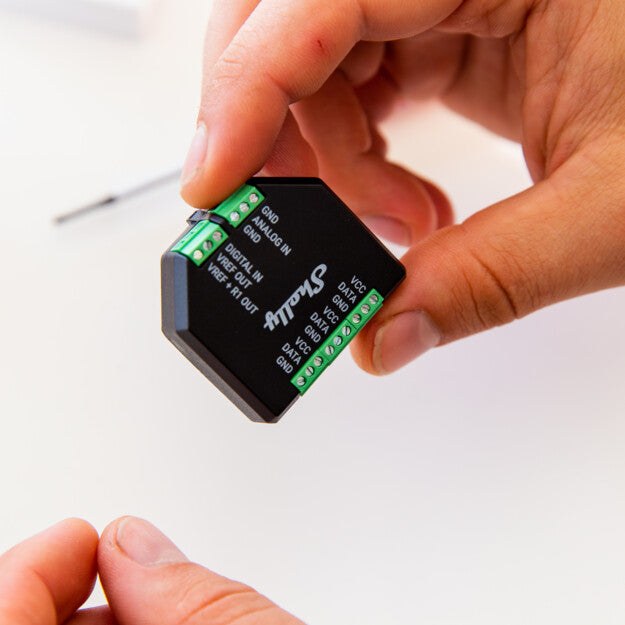

Device electrical interfaces
Inputs

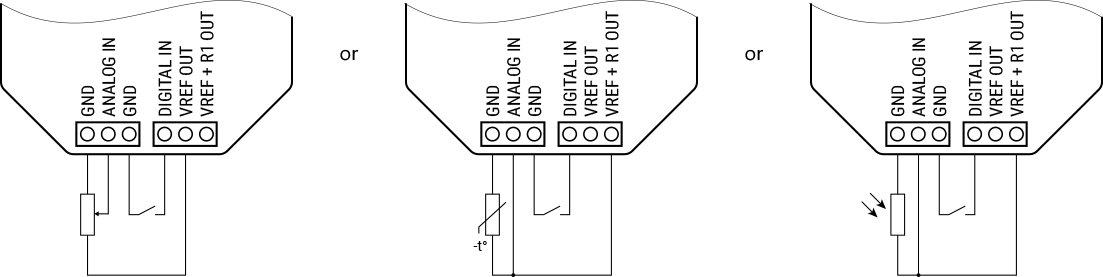

1 analog input: ANALOG IN
1 digital input: DIGITAL IN
Output
1 reference voltage output: VREF OUT
1 reference voltage through a pull-up resistor output: VREF + R1 OUT
2 ground terminals: GND*

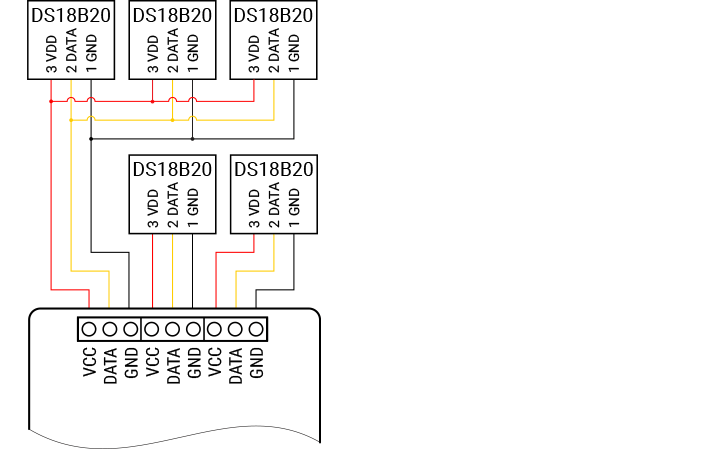

1-Wire interface
3 sensor power supply outputs (connected to the same PCB track): VCC
3 sensor data terminals (connected to the same PCB track): DATA
3 ground terminals: GND*
Connected to the same PCB ground layer.

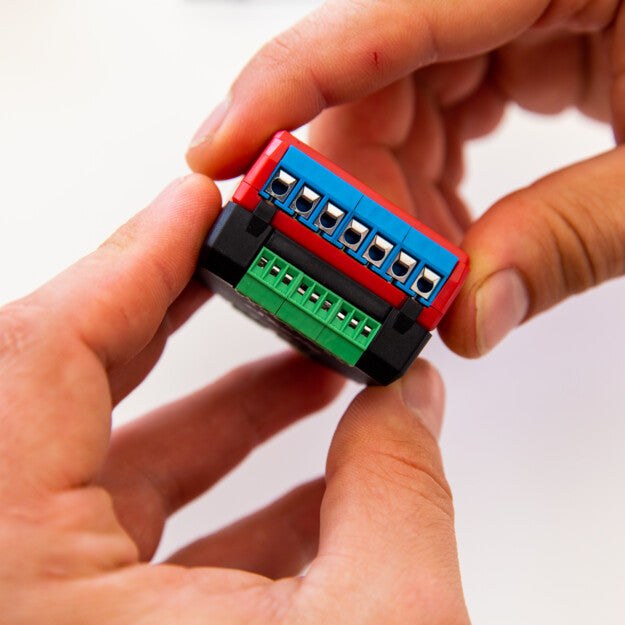

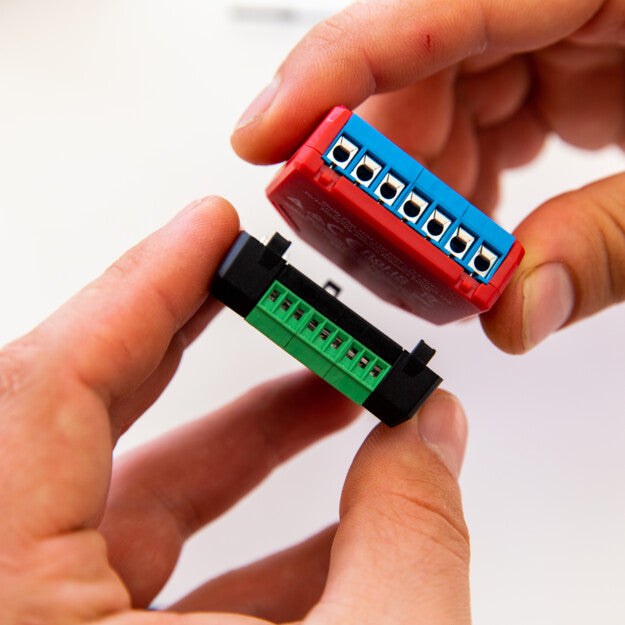

Add-on interface
Shelly proprietary serial interface to connect to a Shelly Plus device
Supported sensors
Up to 5 DS18B20
Single DHT22
NTC resistors with 10 kΩ nominal resistance and β=4000 K
Photoresistors
PIR sensors
Soil moisture sensors
Ultrasonic proximity sensors
Capacitive liquid level sensors
Sound detectors
Other analog sensors with 0 to 10 V output voltage
Type | Value |
|---|---|
Physical | |
Size (HxWxD): | 37x42x15 ±0.5 mm / 1.46 x 1.65 x 0.59 ±0.02 in |
Weigh: | 105 g / 3.70 oz |
Shell material: | Plastic |
Screw terminals max torque: | 0.1 Nm / 0.89 lbIn |
Conductor cross section: | max. 1 mm² / 17 AWG |
Conductor stripped length: | 4.5 mm / 0.18 in |
Color: | Black |
Environmental | |
Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity | 30 % to 70 % RH |
Max. altitude | 2000 m / 6562 ft |
Electrical | |
Power supply voltage AC: | N/A |
Power supply voltage DC: | 3.3 V (from Shelly plus device) |
Power consumption: | < 0.5 W (without sensors) |
Output circuits ratings | |
VCC max. current: | 10 mA |
VREF OUT max. current: | 1 mA |
VREF+R1 OUT resistor | 10 kΩ |
Shelly Plus device firmware capabilities | |
Shelly Plus Addon supporting devices: | Shelly Plus devices:
|
Shelly Gen3 devices:
| |
Shelly Gen4 devices:
| |
Temperature reading: | Depends on the DS18B20 or DHT22 sensors |
Humidity reading: | Depends on the DHT22 sensor |
Digital input: | -15 V to 0.5 V (True) / 2.5 V to 15 V (False)* |
Analog input range: | 0 to 100% |
Analog input report threshold: | 1%** |
Voltmeter range: | 0 to 10 V |
Voltmeter report threshold: | 0.1 V** |
Analog input / Voltmeter accuracy | Better than ±5% |
* Logic can be inverted in the digital input settings
** Can be configured in the analog input / voltmeter settings
Legend
Terminals | External sensor pins | ||
|---|---|---|---|
VCC | Sensor power supply terminals | VCC/VDD | Sensor power supply pins |
DATA | 1-wire data terminals | DATA/DQ | Sensor data pins |
GND | Ground terminals | GND | Ground pins |
ANALOG IN | Analog input | ||
DIGITAL IN | Digital input | ||
VREF OUT | Reference voltage output | ||
VREF+R1 OUT | Reference voltage through a pull-up resistor* output | ||
*For passive devices that need it to form a voltage divider. |
