Key Features
1-to-5 splitter for temperature sensors
Plug-and-play 3.5 mm jack connection
Supports up to 5x DS18B20 temperature probes
Enables multi-point temperature monitoring
Designed for easy use with The Pill by Shelly’s temperature sensors
Device identification
Device name: Splitter 1 to 5 - 3.5mm jack (Accessory for The Pill by Shelly)
Device model: N/A
Short description

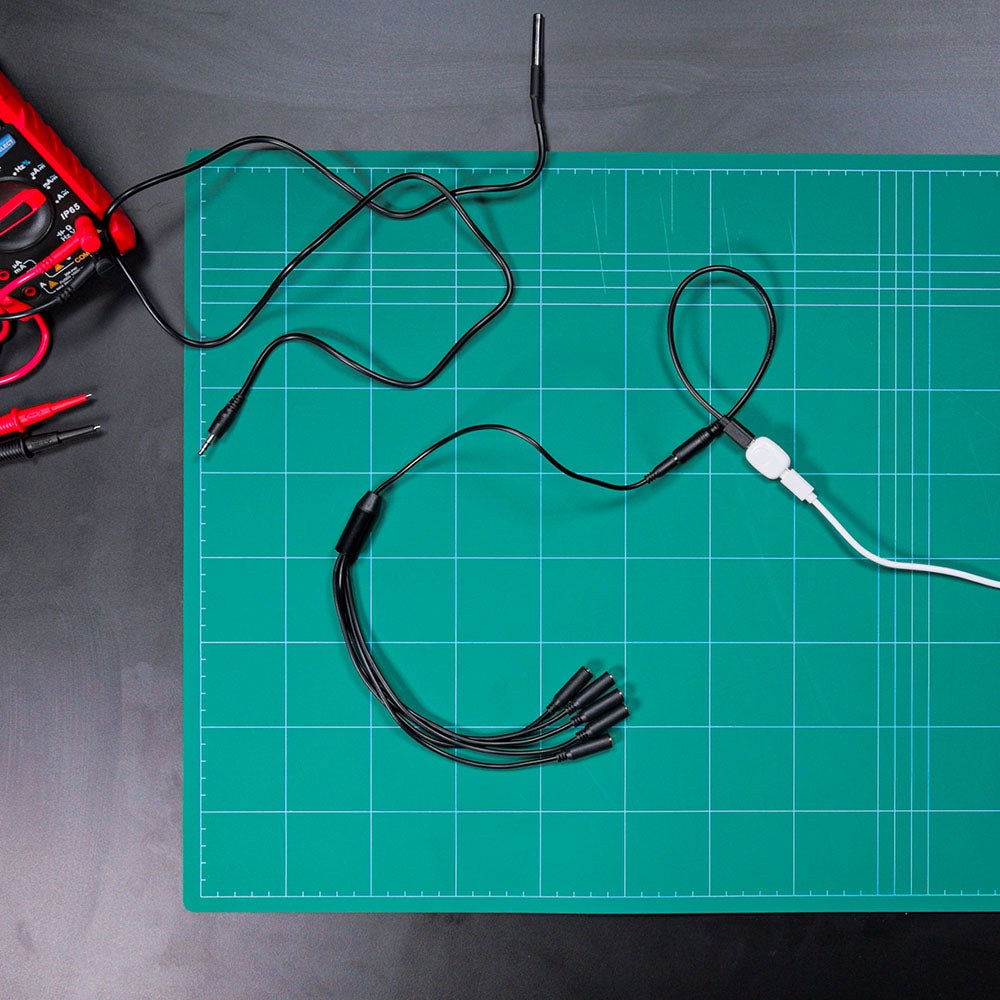

Enhance temperature measurement by connecting simultaneously up to 5 Temperature probes. The splitter allows to extend the built-in Cable Adapter (3.5mm jack) up to 5 different temperature sensors DS18B20 (3.5 mm jack).
Supported temperature sensors: Up to 5x DS18B20 - 3.5mm Jack.
Physical | |
Weight: | 40 g |
Cable length: |
|
Wire colors: | Black |
Shell color: | black |
Connectors: |
|
Environmental | |
Ambient working temperature: | 0 to 40 °C / 32 to 105°F |
Storage temperature: | -20°C to 40°C / -5°F to 105°F |
Humidity: | 30 % to 70 % RH |
Max. altitude: | 2000 m / 6562 ft |
What are the differences between the different generations of Shelly products?
Each new generation adds more power, memory, and features:
Gen 1 offers basic control;
Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;
Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;
Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.
Can I control the device via Bluetooth?
No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.
For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.
Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.
Is it possible to use the device without a hub?
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
Use cases
Multi-Point Temperature Monitoring
With the 1-to-5 Splitter, you can track temperature at multiple points using up to five DS18B20 sensors connected to The Pill by Shelly. Place the probes in different spots and view every reading in the Shelly Smart Control app.
