Device identification

• Device name: Shelly PM Mini Gen3

• Device model: S3PM-001PCEU16

• Device SSID: ShellyPMMiniG3-XXXXXX

• BLE model ID: 0x1023

Short description

Shelly PM Mini Gen3 is a small form factor power meter. Enhanced with all the gen2 firmware flexibility, it provides professional integrators with additional options for end-customer solutions. It can work standalone in a local Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS. The device is an improved version of Shelly Plus PM Mini with a more advanced processor and increased memory.

Shelly PM Mini Gen3 can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.

The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main features

• Power Meter: Designed as a small form factor power meter, allowing you to monitor the power consumption of connected devices.

• Enhanced Firmware Flexibility: Inherits the flexibility of gen2 firmware, providing professional integrators with additional options for end-customer solutions.

• Compact size: PM Mini Gen3 can be connected in very tiny spaces, unreachable for other devices.

• Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.

• Remote Access: Can be accessed, set up, and monitored remotely by the user, as well as communicate with an automation system within the same network infrastructure.

• Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.

• BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

• WiFi Range extender for IoT devices: A WiFi extender is employed to expand the reach of your WiFi network by receiving your current WiFi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.

• Scripting: https://shelly-api-docs.shelly.cloud/gen2/ComponentsAndServices/Script

• Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP

Use cases

• Power Consumption Monitoring: The primary purpose is to monitor the power consumption of connected devices in real-time. This information can be valuable for understanding energy usage patterns and making informed decisions to reduce consumption.

• Energy Efficiency Optimization: Identify energy-hungry appliances and optimize their usage to improve overall energy efficiency in your home or workspace.

• Appliance Health Check: Keep track of the power usage of individual appliances to assess their health and performance over time. Sudden spikes or changes in power consumption may indicate issues with the appliance.

• Cost Management: With the knowledge of power consumption, you can estimate the cost of running specific devices and manage your electricity expenses more effectively.

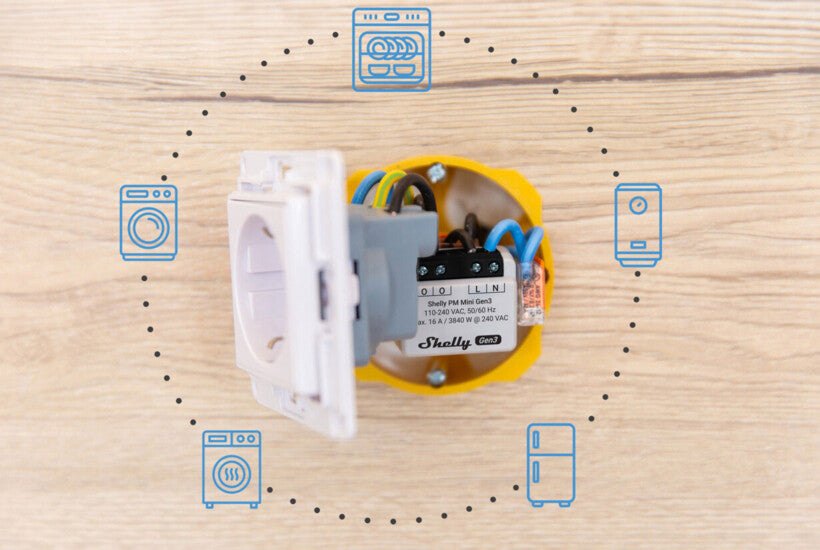

• Space-Efficient Retrofitting: Integrate the device into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.

• Remote Monitoring: Like the Shelly 1PM Mini Gen3, the PM Mini Gen3 also supports remote access. This allows you to monitor power consumption even when you're away from home.

Simplified internal schematics

Device electrical interfaces

Inputs

• 2 line inputs on screw terminals: 1 L and 1 N

Outputs

• 2 load circuit outputs (bridged internally): 2 O

Connectivity

• Wi-Fi

• Bluetooth

Supported load types

• Resistive (incandescent bulbs, heating devices)

• Capacitive (LED light drivers, capacitor banks, electronic equipment, motor start capacitors)

• Inductive (transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

• One (Control) button

  • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

  • Press and hold for 10 seconds to factory reset the Device.

  • Outputs

    • LED (monocolor) indication

      • AP (Access Point) enabled and Wi-Fi disabled:
        1 second ON / 1 second OFF

      • Wi-Fi enabled, but not connected to a Wi-Fi network:
        1 second ON / 3 seconds OFF

      • Connected to a Wi-Fi network:
        Constantly ON

      • Cloud is enabled, but not connected:
        1 second ON /5 seconds OFF

      • Connected to Shelly Cloud:
        Constantly ON

      • OTA (Over the Air Update):
        ½ sec ON / ½ second OFF

      • Button pressed and held for 5 seconds:
        ½ second ON / ½ second OFF

      • Button pressed and held for 10 seconds:
        ¼ second ON / ¼ second OFF

    The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Basic wiring diagrams

Legend

What are the differences between the different generations of Shelly products?

Each new generation adds more power, memory, and features:

Gen 1 offers basic control;

Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;

Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;

Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.

Learn more: Comparison of Shelly Gen 1, Gen 2 and Gen 3 devices (Shelly support)

Can I control the device via Bluetooth?

No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.

For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.

Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.

Is it possible to use the device without a hub?

Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
