Key Features
Battery operated - 1x CR123A battery - Not restricted as per IATA s.p. A123
LED indications and loud alarm; Alarm pause (Hush mode)
Low battery warning
Easy installation
Device identification
Device name: Shelly Plus Smoke
Device model: SNSN-0031Z
Device SSID: ShellyPlusSmoke-XXXXXX
Short description
Shelly Plus Smoke (the Device) is a smart photoelectric smoke alarm, which is effective at detecting slow fires that smolder for hours before bursting into flames.
Sources of these fires may include burning cigarettes left on couches or bedding.
Features
Battery operated
LED indication
Low battery warning
Alarm pause (Hush mode)
Test function
Easy Installation
DIN EN 14604 certified
Main applications
Residential
Connectivity
Wi-Fi
Bluetooth
Each connectivity option can be enabled or disabled by the user.
User interface
Inputs
One push button
Press and hold for 3 sec to test the Device.
Press briefly to silence an alarm.
Press briefly 3 times to put the Device in Setup mode for 2 minutes.
Press briefly 5 times to factory reset. Device stays in Setup mode for 2 minutes.
Outputs
LED indication
Normal operation: Red light flashes once every 53 seconds.
Testing: 3 red light flashes.
Alarm: Continuous red light flashes.
Malfunction: Red light flashes twice every 53 seconds
Hushed alarm: Red light flashes once every 10 seconds.
Low battery warning: Red light flashes once every 53 seconds (with sound).
Hushed low battery warning: Red light flashes once every 53 seconds (with no sound).
Device in Setup mode: Green light flashes quickly.
Device in Setup mode for 2 minute: Green light flashes slowly.
Buzzer
Button pressed: 1 short beep.
Testing: 3 short beeps.
Alarm: Continuous loud beeps.
Low battery warning: Short beep once every 53 seconds.
Type | Value |
|---|---|
Physical | |
Size (DxH): | 86x31 ±0.5 mm / 3.39x1.22 ±0.02 in |
Weight: | 95 ±1 g / 3.35 ±0.05 oz |
Mounting: | Ceiling |
Shell material: | Plastic |
Color: | White |
Device lifespan: | 10 years |
Environmental | |
Ambient temperature: | -0 °C to 55 °C / 32 °F to 131 °F |
Humidity: | 30 % to 95 % RH |
Electrical | |
Power supply voltage AC: | N/A |
Power supply voltage DC: | 1x 3 V CR123A/CR17335 battery |
Battery lifespan: | 5 years (with original battery) |
Sensors, meters | |
Smoke sensor: | Photoelectric |
Radio | |
RF band: | 2400 - 2495 MHz |
Max. RF power: | <20 dBm |
Wi-Fi protocol: | 802.11 b/g/n |
Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth Protocol: | 4.2 |
Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
MCU | |
CPU: | ESP32-U4WDH |
Flash: | 4 MB |
Firmware capabilities | |
Webhooks (URL actions): | 10 with 2 URLs per hook |
Scripting: | No |
MQTT: | Yes |
CoAP: | No |
What are the differences between the different generations of Shelly products?
Each new generation adds more power, memory, and features:
Gen 1 offers basic control;
Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;
Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;
Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.
Can I control the device via Bluetooth?
No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.
For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.
Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.
Is it possible to use the device without a hub?
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
Use cases

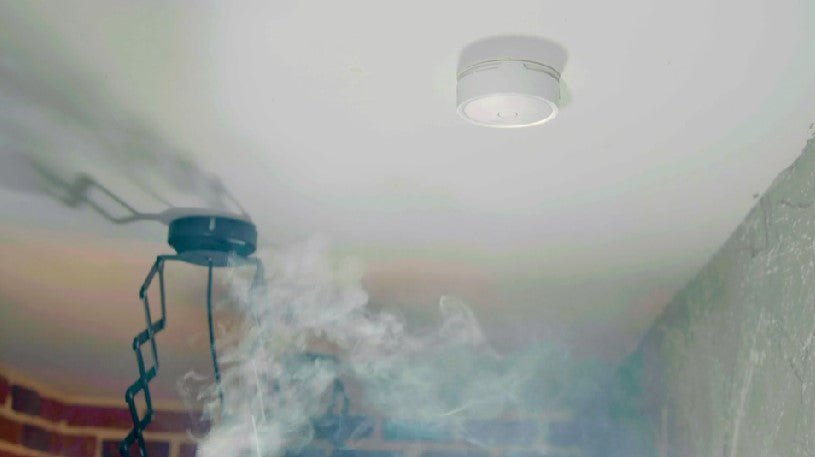

Sends an immediate notification and sounds alarm
When Shelly Plus Smoke detects a risk, it sounds a loud alarm for everyone inside to hear, while simstarts the personalised scene you've selected for the event, and notifies you through the app, no matter how far away from home you are.

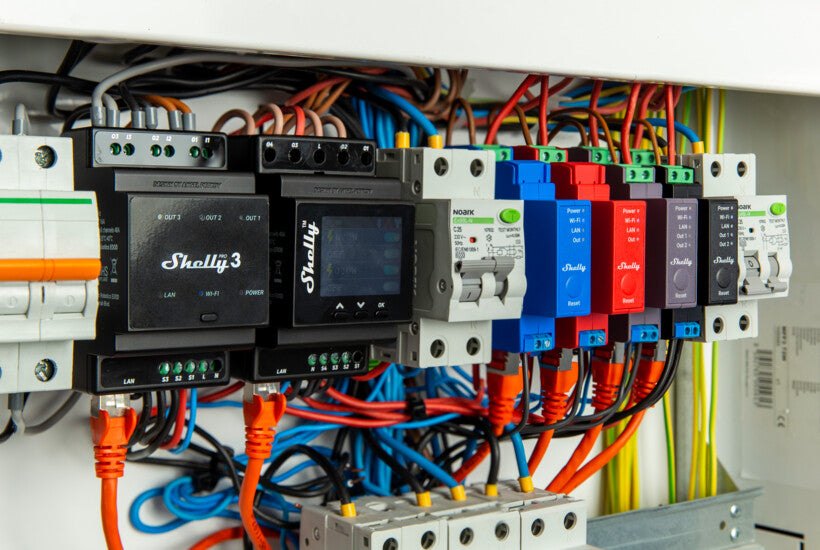

Cuts off power supply to all appliances
In order to prevent further damage, Shelly Plus Smoke can trigger your other Shelly devices using scenes or webhooks to quickly cut off the power to all appliances in the room where the fire has occurred.

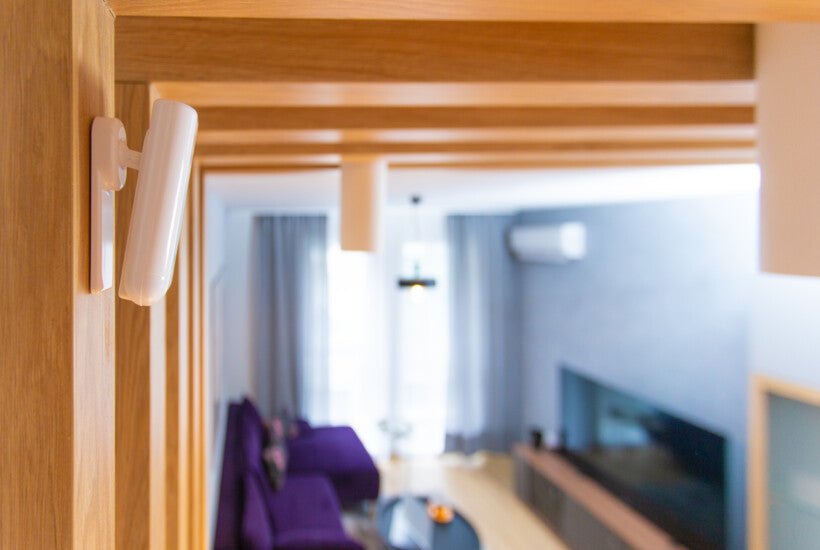

Notifies you if anyone is in the room
Together with Shelly Motion2, you can be instantly alerted if motion is detected in the room. Together with Shelly Motion2, you can be instantly alerted if motion is detected in the room.

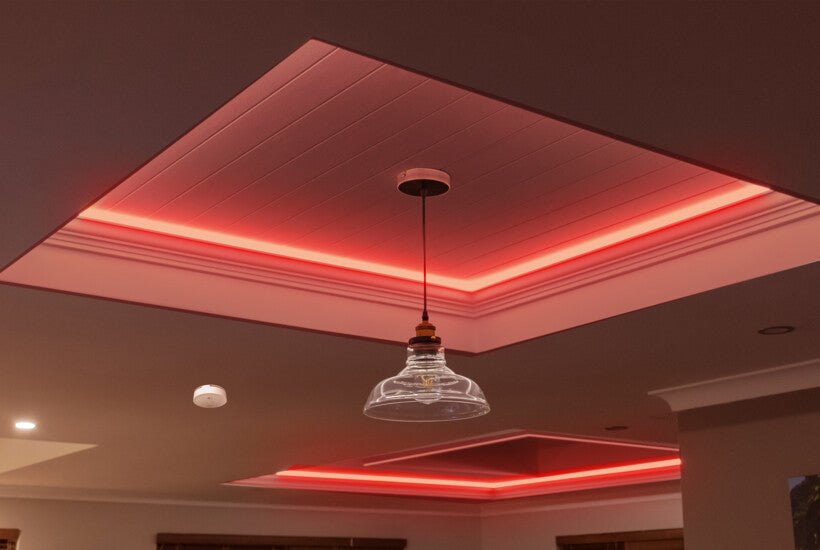

Turns on emergency lighting and unlocks all doors
If you have RGBW bulbs, strips, or alarms around your home, Shelly Plus Smoke can trigger them to turn red and lead the way to the nearest exit for anyone who is in the house.
