Shelly BLU Motion ZB White

Device identification

• Device name: Shelly BLU Motion ZB

• Device model: SBMO-103Z

• Device Bluetooth ID: 0x0013

Short description

Shelly BLU Motion ZB(the Device) is a compact, battery-powered motion sensor designed to bring smart automation to any space without wiring or drilling. It detects movement and ambient brightness in one device, making it ideal for automating lights, scenes, and notifications based on real activity and actual room conditions.

With dual wireless connectivity, BLU Motion ZB combines flexible Zigbee-based smart home integration with low-energy Bluetooth capabilities for advanced presence and automation scenarios. Adjustable motion sensitivity and configurable light thresholds help you fine-tune when and how your automations trigger, while the long-life CR2477 battery keeps it running reliably for extended periods.

Main features

• Battery-powered by a single CR2477 cell, providing long, maintenance-friendly operation without wiring

• Integrated motion detection with adjustable sensitivity, so you can tailor responsiveness for hallways, living rooms, or quieter areas

• Built-in lux sensor with three configurable levels (dark, twilight, bright), including customizable thresholds between levels for precise light-based automations

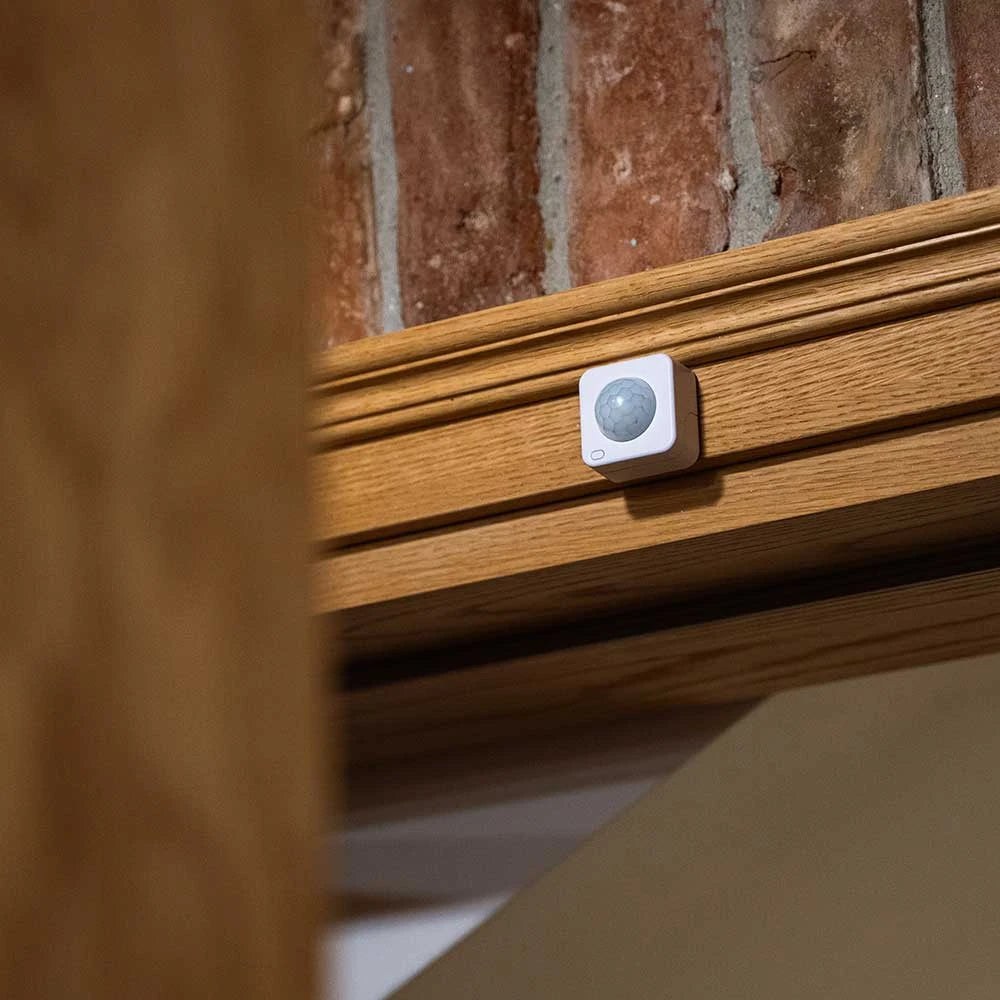

• Easy, tool-free installation using the included double-sided adhesive, allowing you to place the sensor exactly where it’s needed

• Zigbee 3.0 and Bluetooth 5 LE, supporting simultaneous Zigbee + Bluetooth operation for flexible system design

• Supports BTHome, enabling straightforward data integration into Shelly and compatible smart home platforms

Use cases

• Install BLU Motion ZB in a hallway to automatically switch on lights only when someone passes by and the lux sensor reports low ambient light. This reduces energy usage by avoiding unnecessary lighting during the day while ensuring safe, hands-free navigation at night.

• Place the sensor in a living room and combine motion detection with the adjustable twilight level to trigger cozy evening scenes. Lights, blinds, or other Zigbee-connected devices can respond only when the room is both occupied and naturally dim, keeping the environment comfortable and efficient.

• Use BLU Motion ZB in a home office to turn lights and related equipment on when motion is detected and sufficient brightness isn’t already present. When no motion is registered for a set period, your Zigbee automation can switch everything off, helping to cut standby consumption.

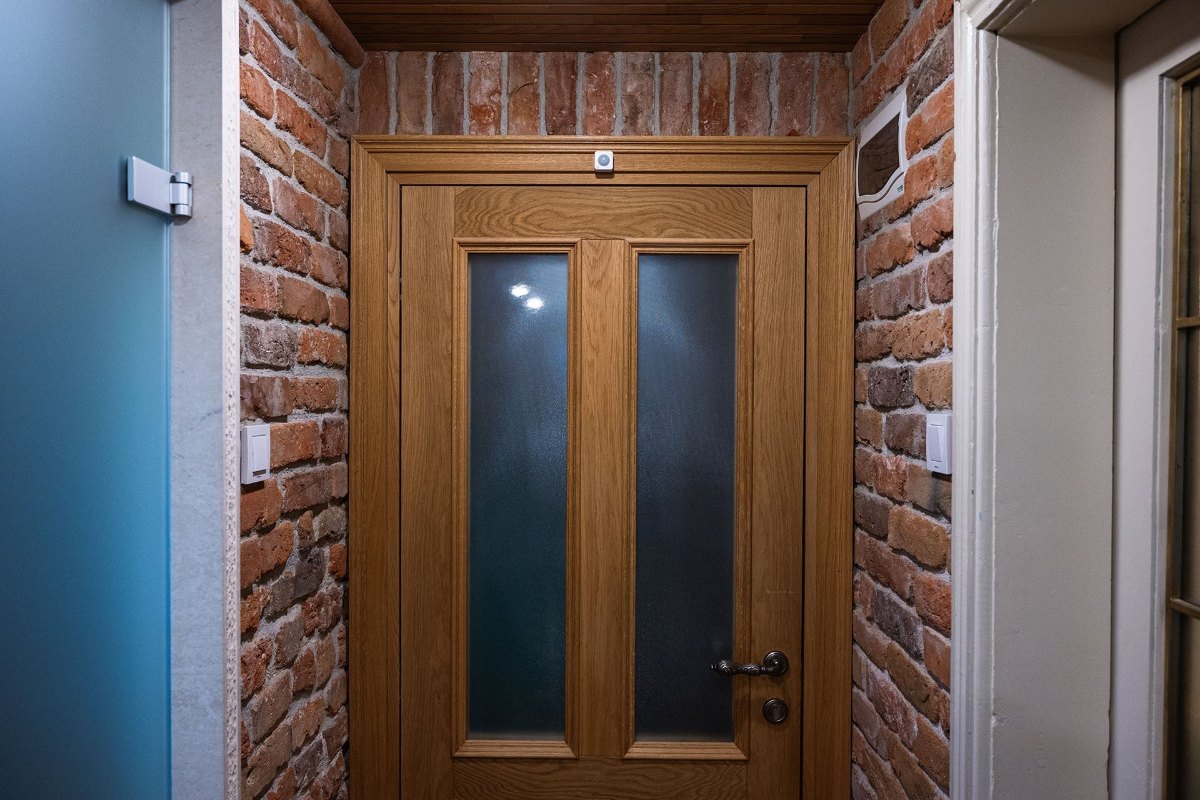

• Mount the sensor near an entryway to act as a subtle security and awareness device, triggering notifications or lighting when unexpected motion is detected in darker conditions. With sensitivity adjustment, you can reduce false triggers from pets or distant movement.

Connectivity

• Bluetooth

• Zigbee

User interface

Inputs

• One push button

  • Press 4 times quickly to put Shelly BLU Motion ZB into pairing mode. The LED starts flashing in blue for one minute.

  • Press 5 times quickly to activate Zigbee pairing. The LED starts flashing purple for one minute.

  • Press and hold for 30 sec to factory reset. The LED will flash in red for two seconds and the device will restart.

Outputs

• The device will broadcast every motion detection, indicating it by a red flash. This LED flash can be turned of from the Shelly app.

What are the differences between the different generations of Shelly products?

Each new generation adds more power, memory, and features:

Gen 1 offers basic control;

Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;

Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;

Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.

Can I control the device via Bluetooth?

No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.

For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.

Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.

Is it possible to use the device without a hub?

Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
