Typically used for
Room management
Centralized control
Appliances
Heating & Cooling
Key Features
Touch-sensitive 6.95” color display (panoramic or portrait view)
Bluetooth 5.0 and Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) connectivity
Ultra-fast quad-core CPU for instant response
Interchangeable power base
Power monitoring for connected Shelly PM devices
Integrated 5 A relay for light control
Integrated 0.8 W speaker
Bluetooth and SONOS speakers support
Built-in LUX sensor, proximity sensor, and G-sensor (for gestures)
Supports both 100–240 V~ and USB-C (5 V⎓) power for flexible installation
Simple navigation and customizable home screen
Compatible with Shelly Smart Control App, and Home Assistant
Device identification
Device name: Shelly Wall Display X2i
Device model: SAWD-5A1XX10EU0
Device Bluetooth ID: 0x3005
Short description
Shelly Wall Display X2i (the Device) is a smart home control panel with a 6.9” color display and interchangeable power base. It comes with power base that provides switching functionality for one output load circuit.
Compatible devices:
Shelly 2-Output Power Base for Wall Display (provides switching functionality for two load circuits)
Main features
Touch-sensitive 6.9” color display
Power base with integrated relay for light control
Interchangeable power base that can be replaced with Shelly 2-Output Power Base for Wall Display (i-series).
Easy navigation and customizable home screen
Choice between panoramic and portrait view on the display
Integrated 0.8 W speaker
Integrated light sensor
Power consumption monitoring of all devices in a room in your Shelly Smart Control account
Use cases
Space-efficient fitting: Install the Shelly Wall Display X2i in standard electrical wall boxes for light switches.
Appliance Control: Use it to remotely control and automate the operation of various electric appliances such as lights, fans, or other devices. Adjust operation of dehumidifiers, humidifiers, and fans based on the current temperature and humidity conditions. Control other devices based on integrated LUX measurement sensor.
Power Monitoring: Monitor the power consumption of appliances in the room in your Shelly Smart Control account. This is useful for understanding energy usage patterns and promoting energy efficiency.
Home Automation: Integrate the Shelly Wall Display X2i into your home automation system to create custom scenes and schedules for your devices.
Audio integration: Connect a Bluetooth or Sonos speaker to the Shelly Wall Display X2i for enhanced audio control. Stream music, notifications, alarms, and other audio signals for better sound coverage.
Energy Efficiency: Leverage the power measurement feature to identify energy-hungry appliances and make informed decisions to improve overall energy efficiency in your home.
Remote Monitoring: Keep an eye on your devices even when you're away from home. The remote access feature allows you to monitor and control connected appliances from anywhere with internet connectivity.
Climate control: Adjust the heating, ventilation, and air conditioning system based on current temperature and humidity levels to maintain a comfortable indoor environment.
Prevent mold and mildew: Monitor humidity levels to prevent the growth of mold and mildew in spaces like basements and bathrooms. The Shelly Wall Display X2i can activate ventilation or dehumidification devices when needed.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Integrations
Amazon Alexa supported capabilities
Yes
Google Smart Home supported traits
Yes
Samsung SmartThings supported capabilities
Yes
Device electrical interfaces
Inputs
2 power supply inputs on screw terminals: N and L
1 switch/button input on screw terminal
Outputs
1 output
Detailed inputs and outputs description
N/A
Connectivity
Wi-Fi
Bluetooth
Protocols
HTTP
RPC over HTTP
RPC over BLE
Supported load types
Resistive - incandescent and halogen bulbs
Capacitive - LED bulbs, LED drivers, CFL (compact fluorescent lamps)
Inductive - LED light transformers
User interface
Touch-sensitive 6.9” 5-point capacitive color display with fully-customizable layout.
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | With power base: 87x178x36 mm / 3.43x7x1.42 inch Without power base: 87x178x11 / 3.43x7x0.43 inch |
Weight: | With power base: 292 g / 10.3 oz Without power base: 246 g / 8.68 oz |
Touch Screen: | 5-point capacitive |
Screen resolution, px: | 1440x720p |
Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
Conductor cross section: | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 inch |
Mounting: | Wall box |
Shell material: | Plastic, aluminum, glass |
Shell color: | Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
Speaker: | 0.8W*1 |
Environmental | |
Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30 % to 70 % RH |
Max. altitude: | 2000 m / 6562 ft |
Electrical | |
Power supply: | 100-240 V~, 50/60Hz |
Power consumption: | < 5 W |
USB TYPE-C power supply: | 5 V⎓, 1 A |
Output circuits ratings | |
Max. switching voltage: | 240 ~ |
Max. switching current: | 5 A |
USB TYPE-C, voltage: | 5 V⎓ |
USB TYPE-C, current: | 0.5 A |
Sensors, meters | |
Light sensor: | Yes |
Microphone: | Yes |
G-sensor: | Yes |
Proximity sensor: | Yes |
Radio | |
Wi-Fi | |
Protocol: | Wi-Fi 6 Dual Band |
RF band: | 2412 – 2472 MHz 5150 – 5850 MHz |
Max. RF power: | < 20 dBm |
Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth - | |
Protocol: | 5.0 |
RF band: | 2402 - 2480 MHz |
Max. RF power: | < 4 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: | Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
RAM: | 2 GB |
Flash: | 8 GB |
System: | Android 11 |
Firmware capabilities | |
Schedules: | 20 |
Webhooks (URL actions): | 20 with 2 URLs per hook… |
Scripting: | No |
MQTT: | Yes |
Basic wiring diagrams
Legend
Terminals | Wires | ||
|---|---|---|---|
SW | Switch input terminal | N | Neutral wire |
O | Output terminal | L | Live (100-240 V~, 50/60 Hz) wire |
L | Live (100-240 V~, 50/60 Hz) terminal | ||
N | Neutral terminal |
What are the differences between the different generations of Shelly products?
Each new generation adds more power, memory, and features:
Gen 1 offers basic control;
Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;
Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;
Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.
Can I control the device via Bluetooth?
No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.
For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.
Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.
Is it possible to use the device without a hub?
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
Use cases

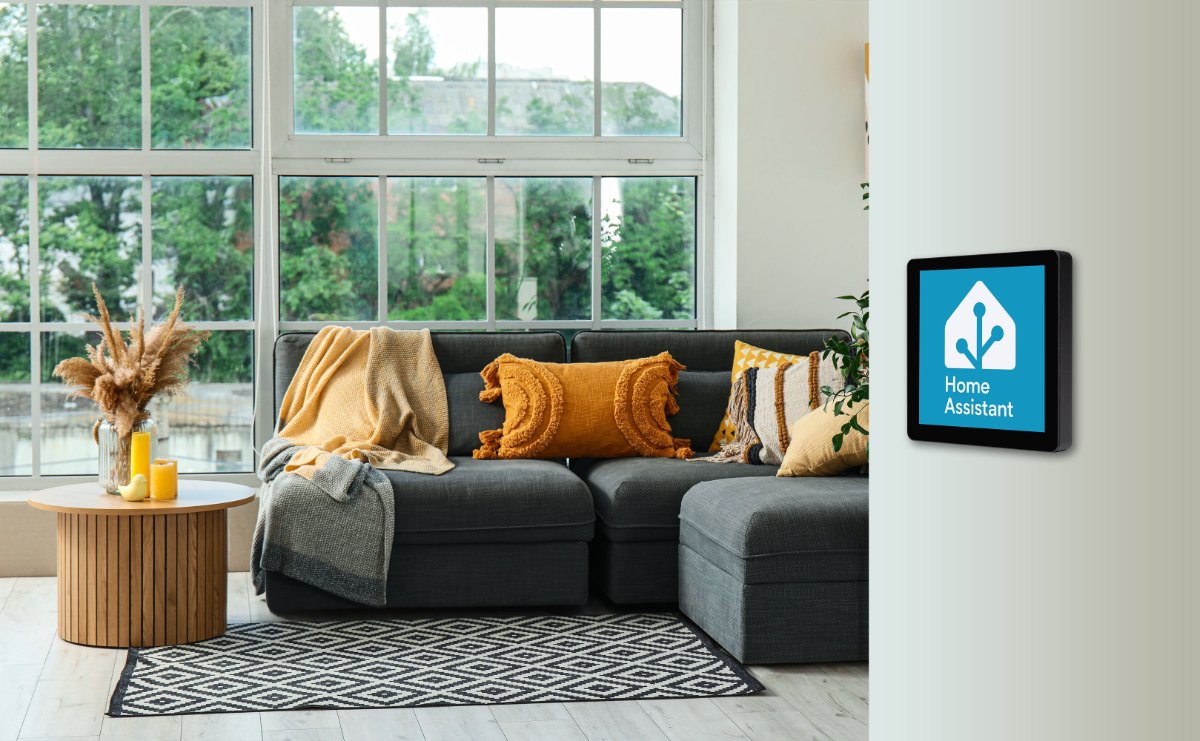

Integrate with Shelly Smart Control App or Home Assistant
Streamline your smart home experience by connecting the Shelly Wall Display with Home Assistant or the Shelly Smart Control App. Manage and automate all your Shelly and compatible devices from one customizable interface.

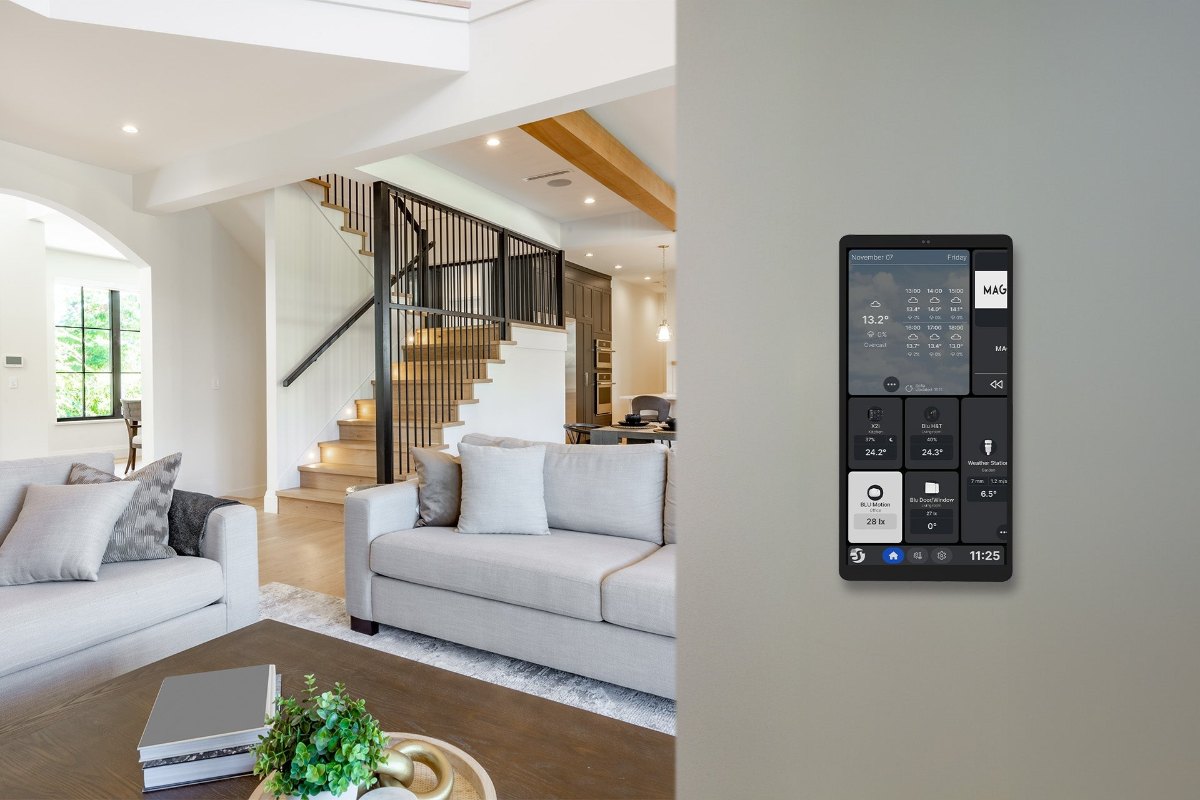

Make Your Devices Work for You
Remotely control and automate various electric appliances such as lights, fans, or other connected devices.

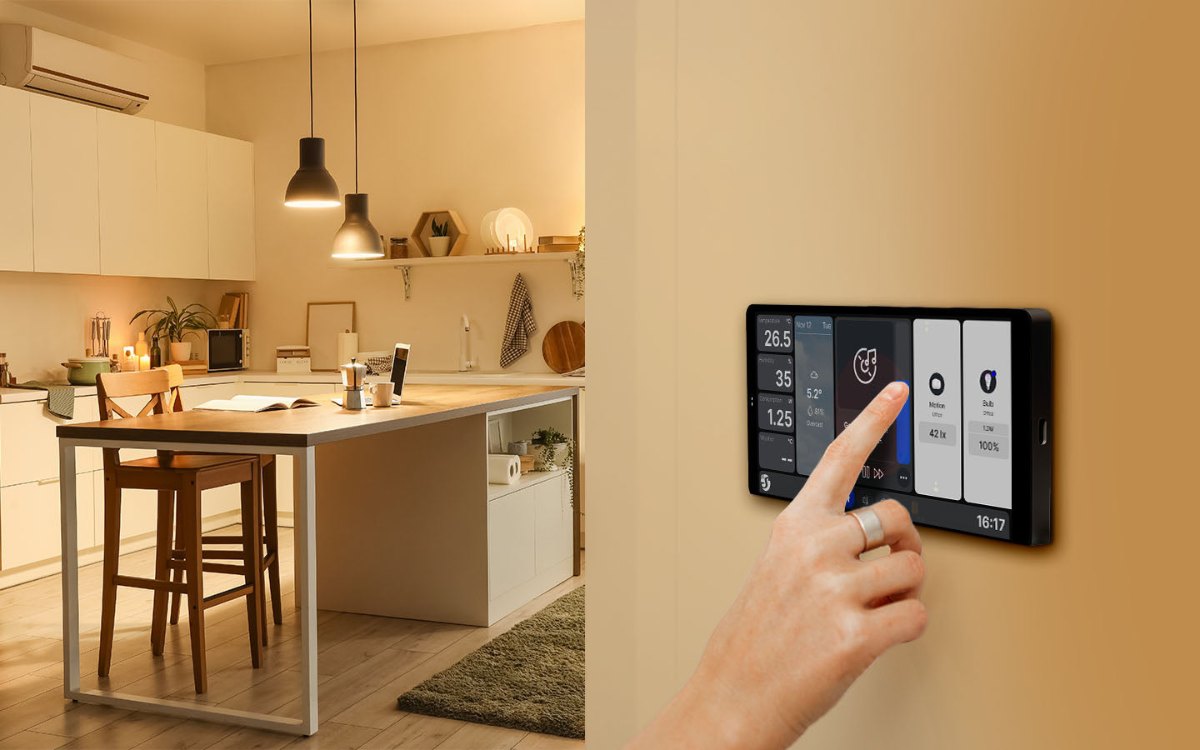

Let Your Home Handle the Climate
Adjust your heating, ventilation, and air conditioning systems based on real-time temperature and humidity data from connected sensors (like Shelly BLU H&T).

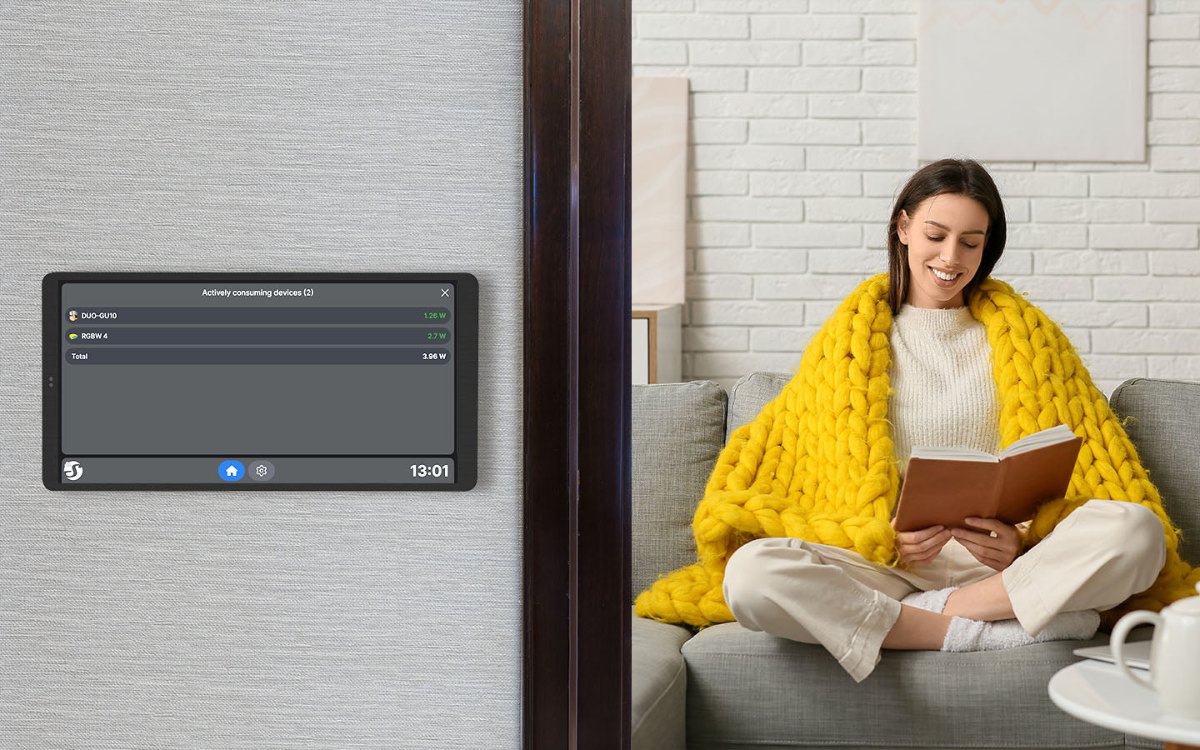

Know Where Your Power Goes
Monitor the power consumption of appliances connected to your Shelly PM devices directly through your Shelly Smart Control account. This functionality helps you track usage patterns, manage costs, and make your home more energy-efficient.
