Typically used for
Door lock
Door unlock
Scene activation
Key Features
Maximum security
100% keyless access
Integrated into the Shelly App
Compatible with Shelly devices
Integration with Smart Home Systems like Google Assistant, Amazon Alexa, and more
Auto unlock (via a Bluetooth
Touch to open technology
Remote scheduling by administrators
The lock includes a built
Easy installation
Robust stainless steel design
Short description
The LOQED Touch Smart Lock is a keyless door lock that opens with a touch, a PIN code or a phone. It replaces the cylinder on a standard door, runs on AA batteries, and reports its state to the Shelly Smart Control app for use in automations and scenes. The 2S version locks and unlocks in about two seconds.
What is in the box
Interior lock module and exterior touch module
Bridge (Wi-Fi connection to the LOQED app)
Cylinder
8 x AA batteries
Access methods

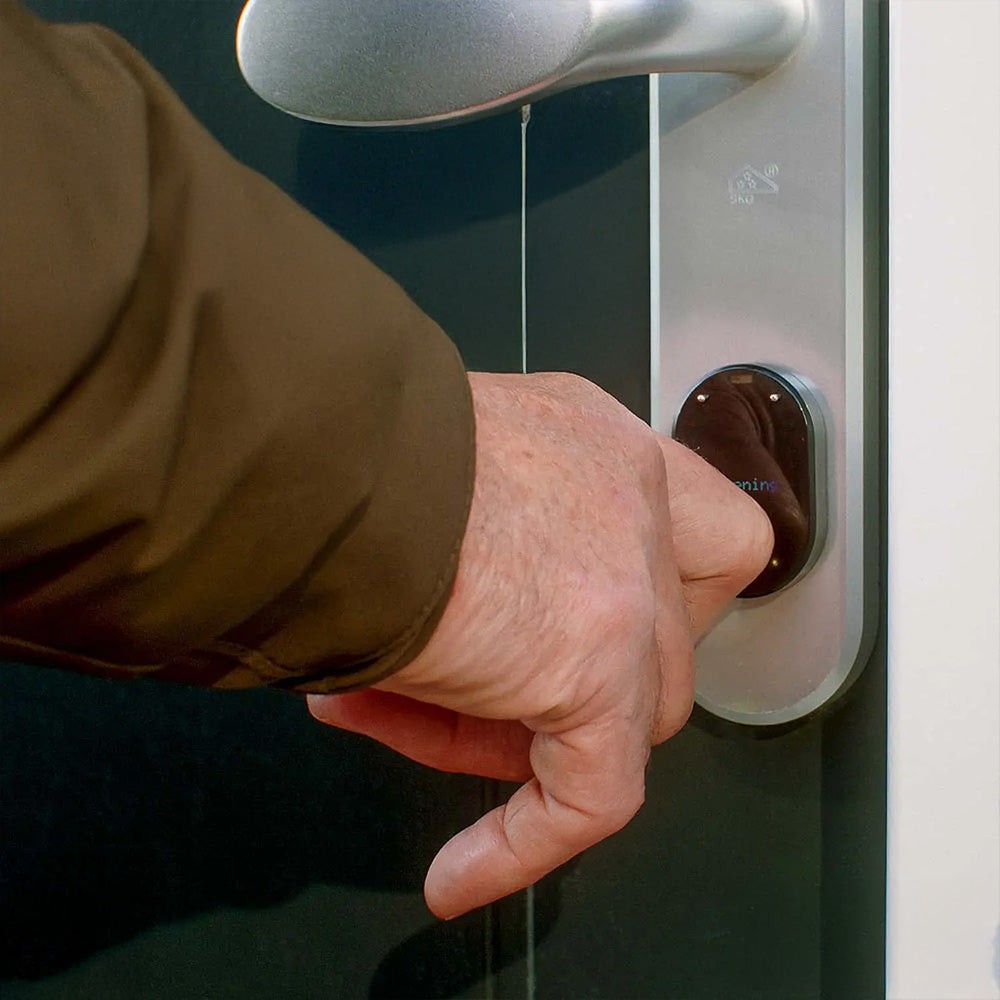

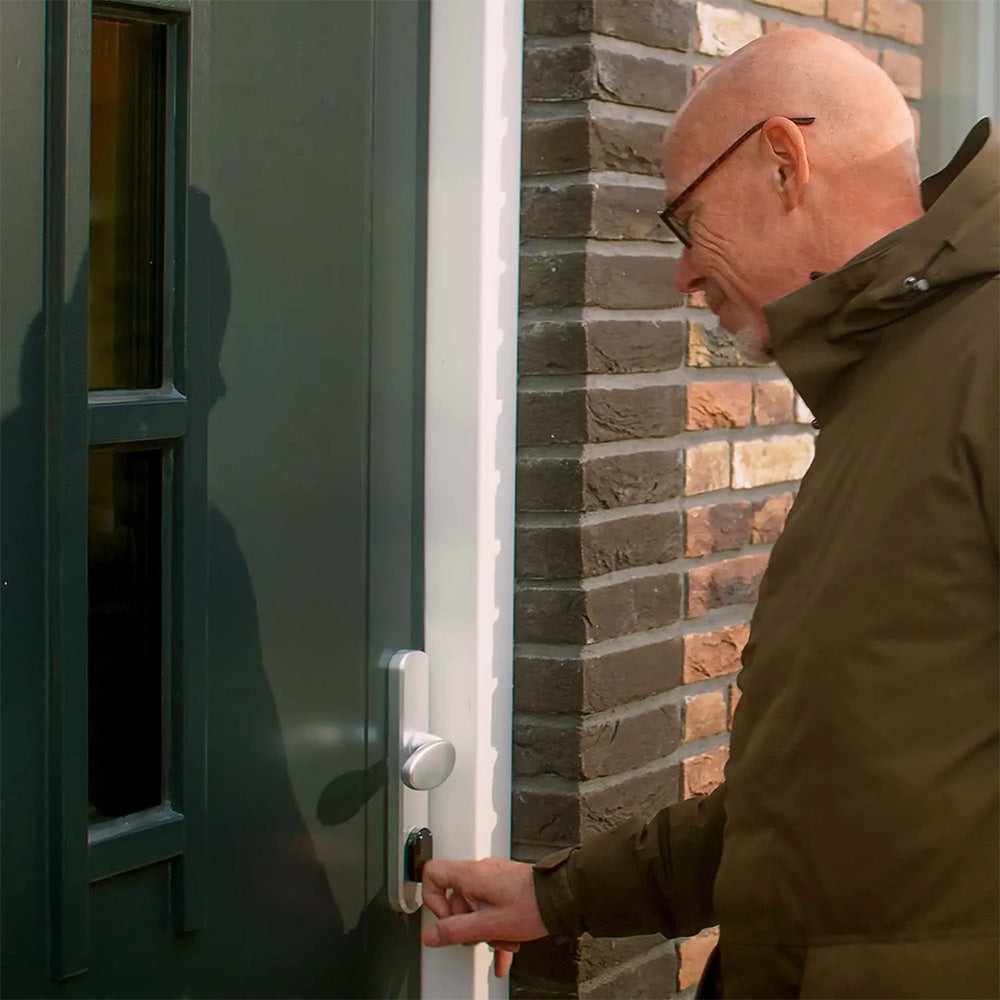

Touch to Open — touch the exterior module with a Bluetooth-enabled phone in proximity (geofencing)
PIN code entered on the touch display
LOQED app, or the Shelly Smart Control app
Digital keys shared with other people, on a schedule set by an administrator
Backup power
If the internal batteries are depleted, a 9 V battery can be held against the two metallic pins on the outside display to power the lock.
Smart home integration
Connects to the Shelly ecosystem through a LOQED account, so lock state can trigger scenes and automations alongside other Shelly devices. Also works with Google Assistant, Amazon Alexa, Homey and other systems.
Physical | |
Exterior touch module dimensions | 51 mm (H) x 33 mm (W) x 88 mm (D) |
Exterior module weight | Approx. 40 g |
Interior module dimensions | 284 mm (H) x 60 mm (W) x 69 mm (D), with knob and handle |
Interior module weight | Approx. 385 g |
Colour | Black |
Environmental | |
Operating temperature, exterior module | -15 °C to +50 °C (5 °F to 122 °F) |
Operating temperature, interior module | 0 °C to +50 °C (32 °F to 122 °F) |
Humidity | 0% to 95% RH, non-condensing |
Weather resistance | Exterior module IP65 (dust-tight, protected against water jets). Interior module must be protected from direct moisture. |
Electrical | |
Power supply | 8 x AA batteries (included) |
Battery type | 1.5 V AA |
Battery life | Typically 7–12 months at about 20 lock/unlock cycles per day |
Radio | |
Bluetooth protocol | 4.2 with BLE |
Bluetooth RF band | 2400 – 2483.5 MHz |
Bluetooth max. RF power | < 4 dBm |
Bluetooth range | Up to 30 m outdoors, up to 10 m indoors |
Wi-Fi protocol | 802.11 b/g/n |
Wi-Fi RF band | 2401 – 2483 MHz |
Wi-Fi max. RF power | < 20 dBm |
Certification | |
Security standards | SKG three-star, EN 1303, EN 15684 |
What are the differences between the different generations of Shelly products?
Each new generation adds more power, memory, and features:
Gen 1 offers basic control;
Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;
Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;
Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.
Can I control the device via Bluetooth?
No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.
For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.
Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.
Is it possible to use the device without a hub?
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
Use cases
Remote control and scheduled automation
Check your lock's status in real time and lock or unlock it from anywhere using the mobile app. Set schedules at bedtime or when everyone leaves the house and enjoy peace of mind knowing your door is always secure.
Kids-friendly access
Make sure your children never stay locked out.
Perfect for holiday rentals
If you own a holiday rental, a smart lock can make guest access simple and secure. Share time-limited digital keys that work only during each guest’s stay and expire automatically at checkout keeping your rental safe between stays.
Sync your lock with other devices
Integrated with the Shelly Smart Control app, the lock can work with other Shelly devices. Your lights can switch on and shutters open automatically to enjoy a bright, welcoming home the moment you step inside.
