Shelly 1 Mini Gen3

Device identification

• Device name: Shelly 1 Mini Gen3

• Device model: S3SW-001X8EU

• Device SSID: Shelly1MiniG3-XXXXXX

• BLE model ID: 0x1015

Short description

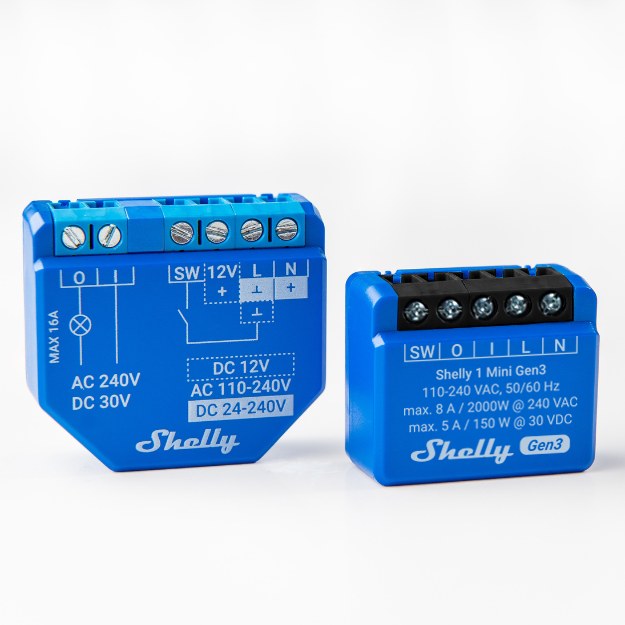

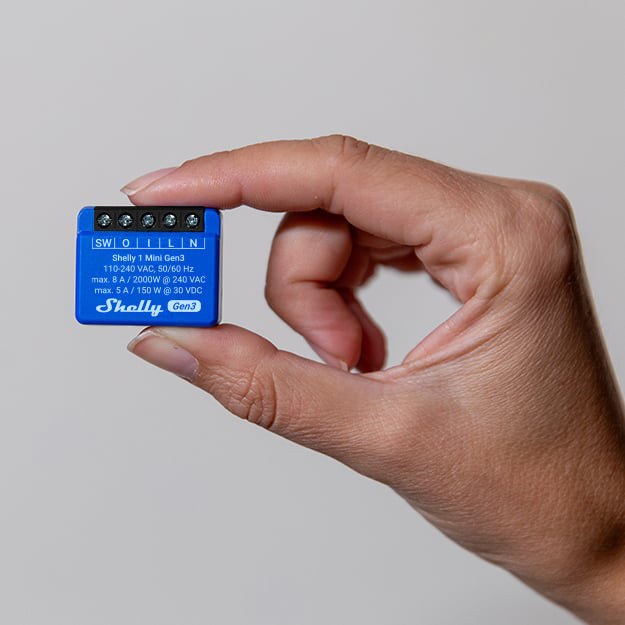

Shelly1 Mini Gen3 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is an improved version of Shelly Plus 1 Mini with a more advanced processor and increased memory.

Shelly1 Mini Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly1 Mini Gen3 Mini has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main features

• Wi-Fi Connectivity: The device can connect to your home Wi-Fi network, allowing you to remotely monitor humidity and temperature data through a smartphone app or other compatible devices.

• Integration with Smart Home Platforms: You can integrate the Shelly 1 Mini Gen3 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This enables voice control and automation capabilities through these platforms.

• Bluetooth Connectivity: Bluetooth and BLE gateway are available for inclusion purposes, which may be useful during the setup process.

• User-Friendly Interface: The device provides a user-friendly interface with a reset button for manual interactions.

• Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.

• Wireless Connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 protocols with specified indoor and outdoor range capabilities.

• Dry Contact: Allows switching on and off of lower voltage devices.

• BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

• WiFi Range extender for IoT devices: A WiFi extender is employed to expand the reach of your WiFi network by receiving your current WiFi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.

• Scripting: https://shelly-api-docs.shelly.cloud/gen2/ComponentsAndServices/Script

• Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP

• Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.

Use cases

• Remote Appliance Control: Turn on or off electric appliances remotely using your mobile phone, tablet, PC, or home automation system.

• Internet-Connected Convenience: Access and control devices from anywhere with internet connectivity, as long as the Shelly 1 Mini Gen3 is connected to a Wi-Fi router.

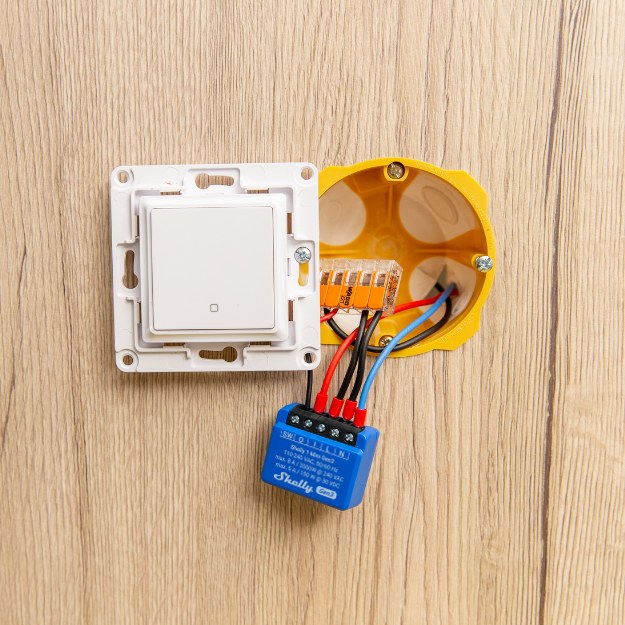

• Space-Efficient Retrofitting: Retrofit the smart switch into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.

• Home Automation: Shelly 1 Mini Gen3 enables automatic control of power appliances for more relaxing and enjoyable experience.

Integrations

Amazon Alexa supported capabilities

Yes

Google Smart Home supported traits

Yes

Samsung SmartThings supported capabilities

Yes

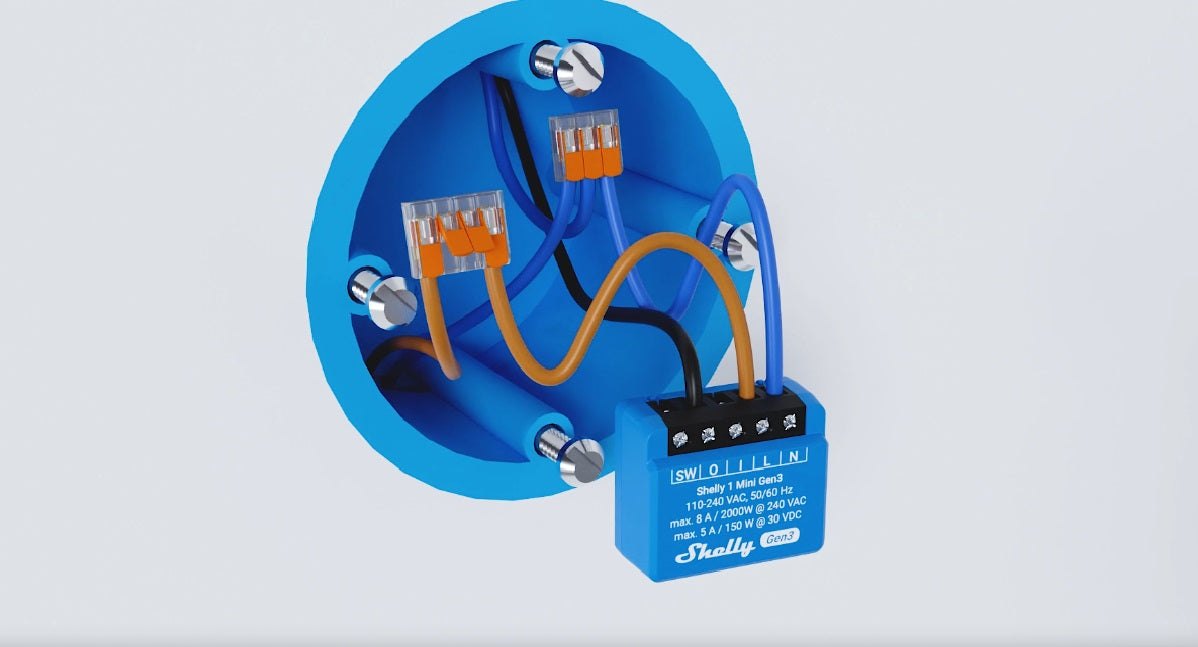

Device electrical interfaces

Inputs

• 1 switch/button input on screw terminal

• 1 potential-free contacts relay input on screw terminal

• 2 power supply inputs on screw terminals: N and L

Outputs

• 1 potential-free contacts relay output on screw terminal

Connectivity

• Wi-Fi

• Bluetooth

Safety function

• Overheating protection

Supported load types

• Resistive (incandescent bulbs, heating devices)

• Capacitive (capacitor banks, electronic equipment, motor start capacitors)

• Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners))

User interface

Inputs

• One (Control) button

  • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

  • Press and hold for 10 seconds to factory reset the Device.

  • Outputs

    • LED (monocolor) indication

      • AP (Access Point) enabled and Wi-Fi disabled:
        1 second ON / 1 second OFF

      • Wi-Fi enabled, but not connected to a Wi-Fi network:
        1 second ON / 3 seconds OFF

      • Connected to a Wi-Fi network:
        Constantly ON

      • Cloud is enabled, but not connected:
        1 second ON /5 seconds OFF

      • Connected to Shelly Cloud:
        Constantly ON

      • OTA (Over the Air Update):
        ½ sec ON / ½ second OFF

      • Button pressed and held for 5 seconds:
        ½ second ON / ½ second OFF

      • Button pressed and held for 10 seconds:
        ¼ second ON / ¼ second OFF

    The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Legend

What are the differences between the different generations of Shelly products?

Each new generation adds more power, memory, and features:

Gen 1 offers basic control;

Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;

Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;

Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.

Can I control the device via Bluetooth?

No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.

For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.

Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.

Is it possible to use the device without a hub?

Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
